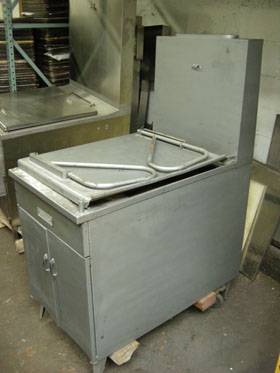

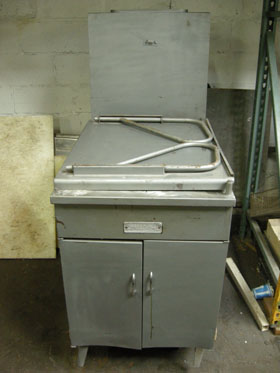

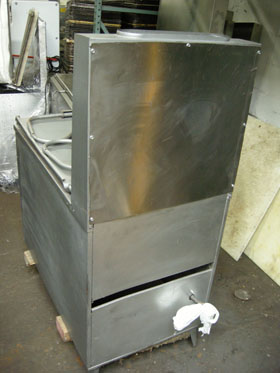

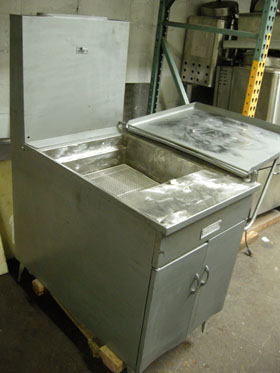

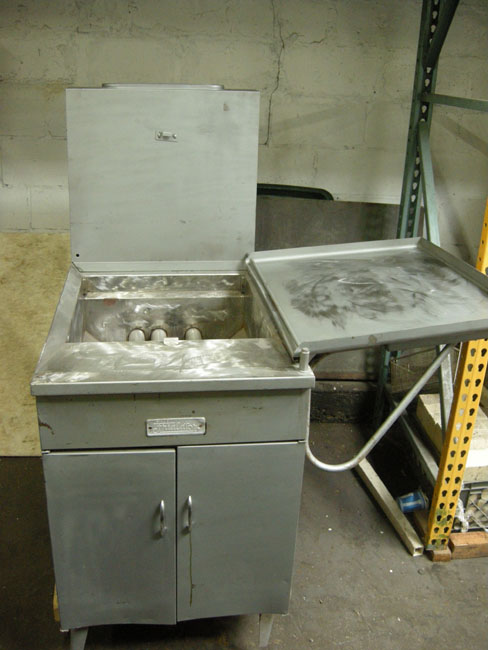

Pitco Frialator High Production Donut Fryer

Item # USD-Pitco 20
This is field is required.
Sold
Available for Shipping
Store Pickup

Please contact us at 718-232-7044 if you are interested in this item. We may have similar items available.

Not Qualified for Free Shipping

    Pitco Frialator High Production Chicken Fryer Used Good Condition

    Good Condition
    Works Well
    Very Reliable
    Professionally Cleaned In Our Warehouse
    Bargain Price


    STANDARD SPECIFICATIONS

    CONSTRUCTION

    �� Welded tank with an extra smooth peened finish
    ensures easy cleaning.

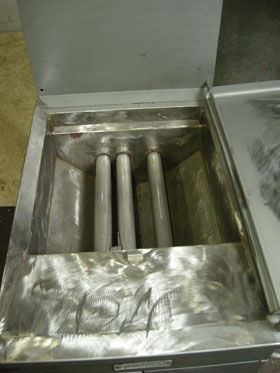

    �� Long-lasting, high-temperature alloy stainless steel
    heat baffles are mounted in the heat exchanger
    tubes to provide maximum heating and combustion
    efficiency.
    �� Standing pilot light design provides a ready flame
    when heat is required.

    CONTROLS

    �� Thermostat maintains selected temperature
    automatically between 200°F (93°C) and 400°F
    (204°C).

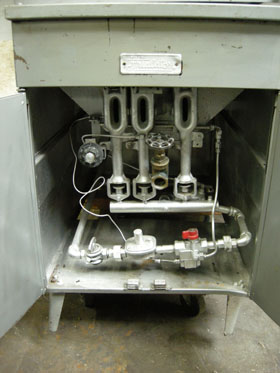

    �� Integrated gas control valve acts as a manual and
    pilot valve, automatic pilot valve, gas filter, pressure
    regulator, and automatic main valve.
    �� Gas control valve prevents gas flow to the main
    burner until pilot is established and shuts off all gas
    flow automatically if the pilot flame goes out.
    �� Temperature limit switch safely shuts off all gas
    flow if the fryer temperature exceeds the upper
    limit.

    OIL CAPACITY 125 - 135 pounds (57 - 61 KG)
    SHIPPING INFORMATION 310 pounds (181 KG) / 45 cubic feet (1.27 cubic meters)
    PERFORMANCE CHARACTERISTICS Cooks 110 lbs (49.9 KG) of fries per hour
    Frying Area 20" x 20" (50.8 cm x 50.8 cm)
    GAS CONSUMPTION 180,000 BTU's/Hour (45,360 KCal)

    Natural Gas



    Click Here for Manufactures Installation Manuel


Shop More Pitco >

Pitco Frialator High Production Chicken Fryer Used Good Condition

Good Condition
Works Well
Very Reliable
Professionally Cleaned In Our Warehouse
Bargain Price


STANDARD SPECIFICATIONS

CONSTRUCTION

�� Welded tank with an extra smooth peened finish
ensures easy cleaning.
�� Long-lasting, high-temperature alloy stainless steel
heat baffles are mounted in the heat exchanger
tubes to provide maximum heating and combustion
efficiency.
�� Standing pilot light design provides a ready flame
when heat is required.

CONTROLS

�� Thermostat maintains selected temperature
automatically between 200°F (93°C) and 400°F
(204°C).
�� Integrated gas control valve acts as a manual and
pilot valve, automatic pilot valve, gas filter, pressure
regulator, and automatic main valve.
�� Gas control valve prevents gas flow to the main
burner until pilot is established and shuts off all gas
flow automatically if the pilot flame goes out.
�� Temperature limit switch safely shuts off all gas
flow if the fryer temperature exceeds the upper
limit.

OIL CAPACITY 125 - 135 pounds (57 - 61 KG)
SHIPPING INFORMATION 310 pounds (181 KG) / 45 cubic feet (1.27 cubic meters)
PERFORMANCE CHARACTERISTICS Cooks 110 lbs (49.9 KG) of fries per hour
Frying Area 20" x 20" (50.8 cm x 50.8 cm)
GAS CONSUMPTION 180,000 BTU's/Hour (45,360 KCal)

Natural Gas



Click Here for Manufactures Installation Manuel
