Hobart Dishwasher Model AM14 - Used Condition

Item # USD-AM14-U
This is field is required.
Sold
Available for Shipping
Store Pickup

Please contact us at 718-232-7044 if you are interested in this item. We may have similar items available.

Not Qualified for Free Shipping

    Hobart Dishwasher Model AM14 Excellent Condition.

    • Approx 3 Years Young
    • Excellent Condition
    • Works Perfect
    • Well Maintained

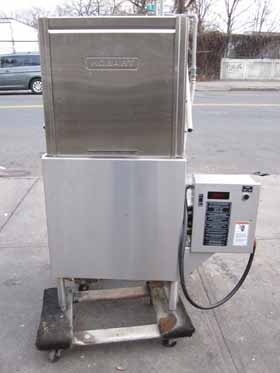

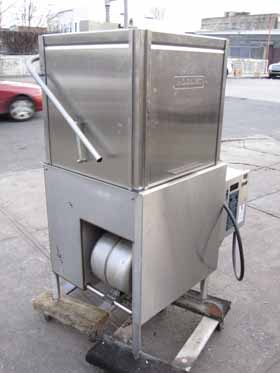

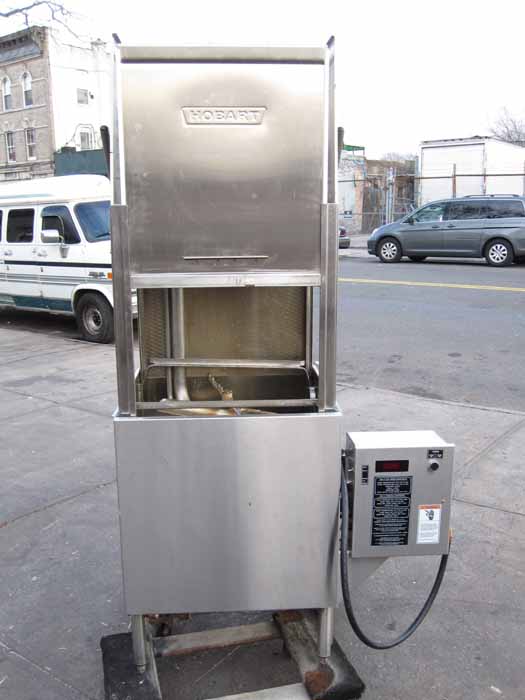

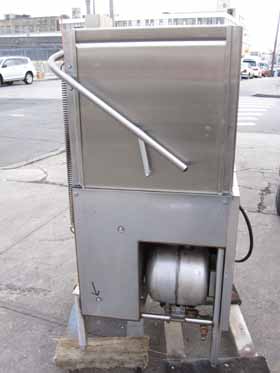

    Hobart door style dishwasher, Semi-automatic.

    Model # AM-14 Serial # 23-1072-071
    Some Great Features:

    • Semi-automatic rack type with solid state electronic control system.
    • Include door cycle switch for automatic operation.
    • Machine ratings:Racks per hour: 53, 1,325 dishes per hour, 2,385 glasses per hour.
    • Table to table-inside tank at table connection: 25 1/4".
    • Wash tank capacity: 16 gallons. Wash pump capacity: 160 gallons per minute.
    • Burner capacity: (natural gas-1000 btu/cu.ft.) cu.ft./hr.: 20
    • Rinse-Minutes operated during hour of capacity operation: 7.95(hot water sanitizing) 9.3(chemical sanitizing). seconds of rinse per rack: 9.
    • Rate of rinse flow-Gals. per min. at 20 Lbs. flow pressure: 8.04. At 25 Lbs. flow pressure.
    • Rinse consumption-Gals. per min. (MAXIMUM), at 20 Lbs. flow pressure: 63.6(hot water sanitizing), 74.4(chemical sanitizing).
    • Rinse cycle/gallons per rack-at 20 PSI flow: 1.2-180F Min., 1.2-140F Min.
    • Steam consumption- pounds per hr.-MAXIMUM, approx. 30 Lbs. per hr.=1 boiler h.p. (bhp)
    • Dishwasher, based on PSI steam and on customer supplying final rinse water at 180F minimum: 43.
    • Peak rate of drain flow-Gals. per min. (initial rate with full tank): 42.

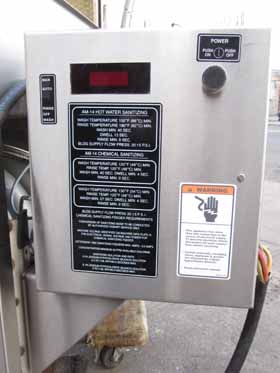

    • Automatic electric time controls: Micro-computer controls, field convertible to either hot water or low temperature chemical sanitizing operation. Digital temperature and cycle status display.
    • 12 volt pilot circuit. Automatic ratio fill. Solid state motor and heater projection. Manual wash/rinse by-pass control switch.
    • Control box mounted on right side of machine is standard.
    • Heating equipment: 5 kw electric emersion heater with temperature control and low water protection.
      0

    Model # AM-14 Phase 3
    Serial # 23-1072-071 Hp 5
    ML # 110976 KW 5.4/7.2
    volts 208/240 Amps 23.9
    Approx Size 26 1/2 " W x 29 1/2" D x 67 1/2 H Approx Weight 450 Lb

    ML # 110976 NSF, UL Listed


    Click here for Manufactures Manual


    Shop More Hobart >

    Hobart Dishwasher Model AM14 Excellent Condition.

    • Approx 3 Years Young
    • Excellent Condition
    • Works Perfect
    • Well Maintained

    Hobart door style dishwasher, Semi-automatic.

    Model # AM-14 Serial # 23-1072-071
    Some Great Features:

    • Semi-automatic rack type with solid state electronic control system.
    • Include door cycle switch for automatic operation.
    • Machine ratings:Racks per hour: 53, 1,325 dishes per hour, 2,385 glasses per hour.
    • Table to table-inside tank at table connection: 25 1/4".
    • Wash tank capacity: 16 gallons. Wash pump capacity: 160 gallons per minute.
    • Burner capacity: (natural gas-1000 btu/cu.ft.) cu.ft./hr.: 20
    • Rinse-Minutes operated during hour of capacity operation: 7.95(hot water sanitizing) 9.3(chemical sanitizing). seconds of rinse per rack: 9.
    • Rate of rinse flow-Gals. per min. at 20 Lbs. flow pressure: 8.04. At 25 Lbs. flow pressure.
    • Rinse consumption-Gals. per min. (MAXIMUM), at 20 Lbs. flow pressure: 63.6(hot water sanitizing), 74.4(chemical sanitizing).
    • Rinse cycle/gallons per rack-at 20 PSI flow: 1.2-180F Min., 1.2-140F Min.
    • Steam consumption- pounds per hr.-MAXIMUM, approx. 30 Lbs. per hr.=1 boiler h.p. (bhp)
    • Dishwasher, based on PSI steam and on customer supplying final rinse water at 180F minimum: 43.
    • Peak rate of drain flow-Gals. per min. (initial rate with full tank): 42.
    • Automatic electric time controls: Micro-computer controls, field convertible to either hot water or low temperature chemical sanitizing operation. Digital temperature and cycle status display.
    • 12 volt pilot circuit. Automatic ratio fill. Solid state motor and heater projection. Manual wash/rinse by-pass control switch.
    • Control box mounted on right side of machine is standard.
    • Heating equipment: 5 kw electric emersion heater with temperature control and low water protection.
      0

    Model # AM-14 Phase 3
    Serial # 23-1072-071 Hp 5
    ML # 110976 KW 5.4/7.2
    volts 208/240 Amps 23.9
    Approx Size 26 1/2 " W x 29 1/2" D x 67 1/2 H Approx Weight 450 Lb

    ML # 110976 NSF, UL Listed


    Click here for Manufactures Manual
