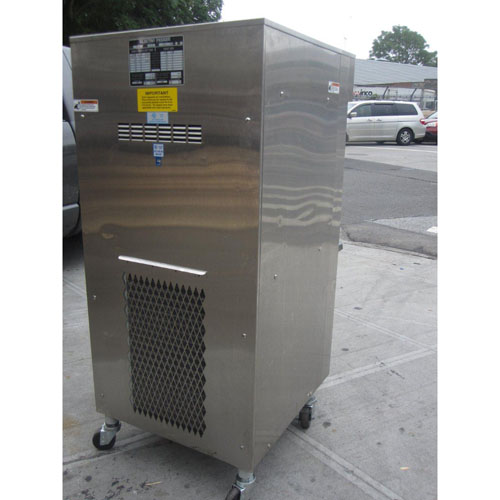

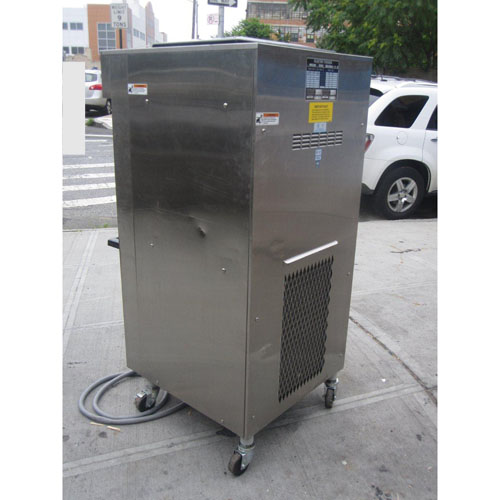

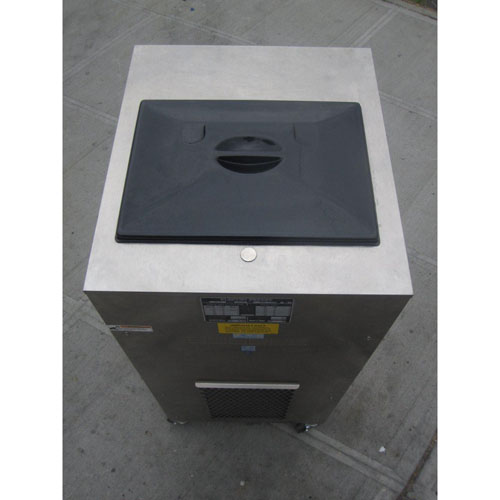

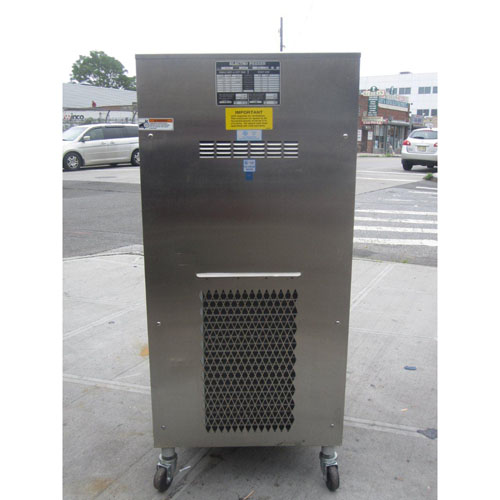

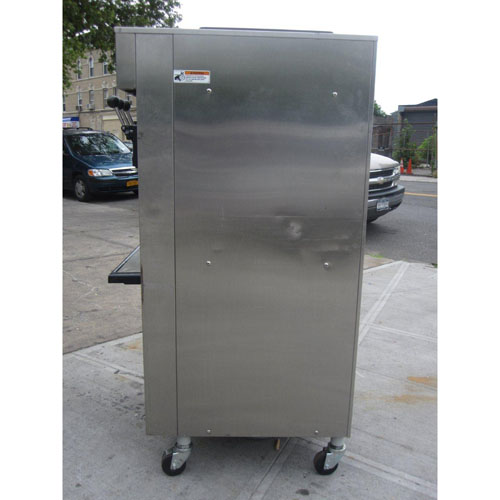

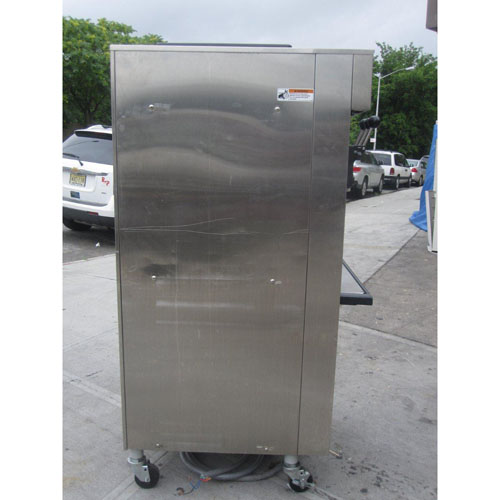

Electro Freeze Ice Cream Machine Model # 56TF-232
- Used
- Very Good Condition
- & Works Perfect

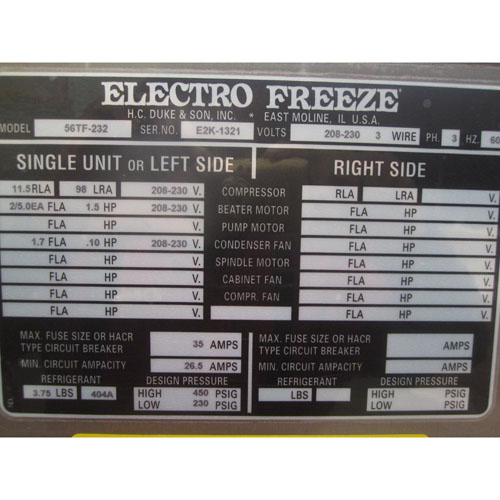

| Model # /strong> | 56 TF-232 | Volt | 208-230 |
| Serial # | E2K-1321 | Phase | 3 |
| Air | Cooled | Amp/strong> | 26.5 |
| Width / Inside | 26" | Hz | 60 |
| Depth / Inside | 30" | Refrigerant | 404a 3.75 Lb |
| Height / Inside | 58" | Shipping Weight | 650 Lb |
Electro Freeze Ice Cream Machine Model: 56TF Gravity-Fed Medium Capacity Twist Soft Serve Freezer Versatile, popular and profitable model. Serves two flavors separately or combine into the popular twist. Ideal choice for medium volume businesses. 56TF Specifications Number of Heads: 2 Hopper Capacity: 32 quarts Cylinder Size: Two 3.7 quarts Voltage: 230 Motor: Two 1.5 HP Compressor: 11,000 BTU 26" wide. 56TF is excellent for dispensing any soft serve mix, including high butterfat products. 1 phase and air cooled. Separate control switch for cabinet refrigeration.

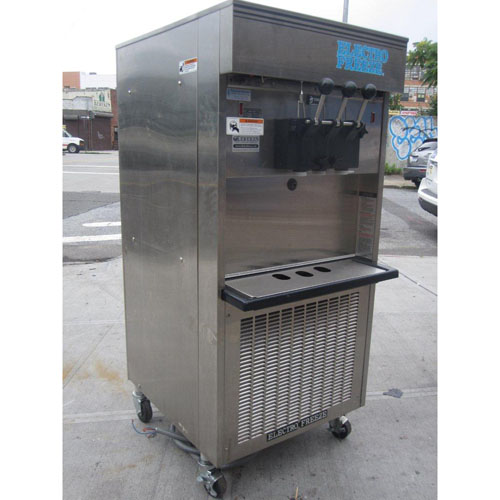

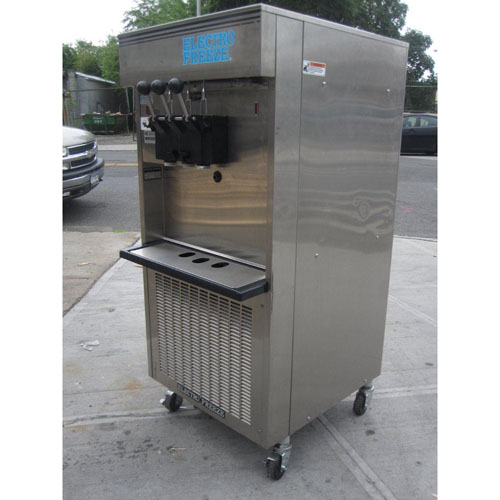

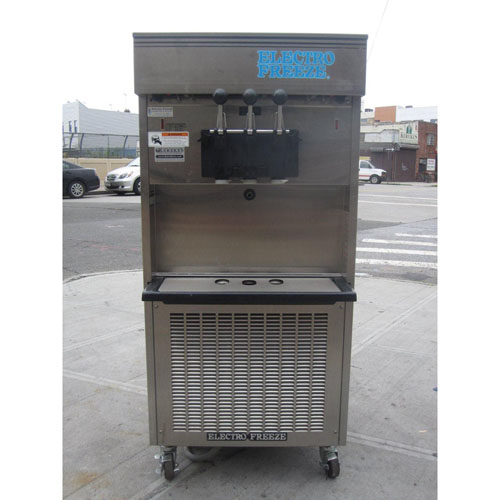

Model 56TF The twin serve head with its three spigots will dispense two separate flavors or the popular twist cone a combination of two flavors.
The Model 56TF has been designed to occupy a minimum of floor space.
It is ideal for dispensing soft serve yogurt frozen custard sherbet and other treats.
Special Features Dispensing Head The finest in insulating materials no frost or sweating.
Easy pull down handle. Beater Blades Plastic durable & long wearing.

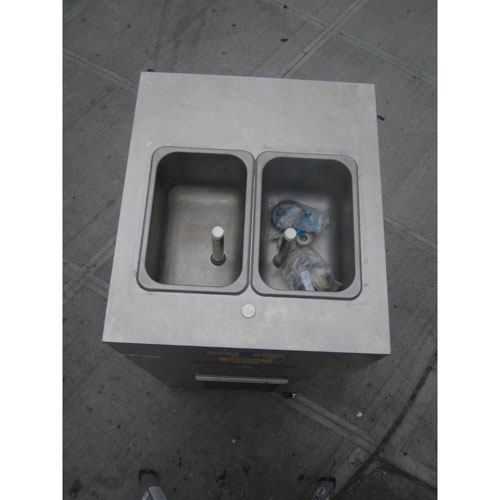

Two 16-Quart Mix Hoppers Insulated for minimum cold loss with separate refrigeration controls.
Refrigeration 2.0 h.p. compressor permits fast freeze down quick recovery and high volume capacity.
Mix Feed Specially designed to maintain optimum overrun.
Mix Level Indicator Flashing light automatically tells operator when mix is needed.
Night Switch Provides controlled refrigeration of product during night or any non-business period reduced energy consumption reduces product deterioration.
Model 56TF BATCH SLUSH FROZEN COCKTAIL Plumbing & Electrical Connections
SHAKE Model 56TF SPECIFICATIONS MODEL NO. Self contained air or water cooled.
REFRIGERANT: R404a MIX HOPPER CAPACITY: 16 quarts each 32 quarts total
WIRING - 208/230 Volt A.C. single phase 60 Hz 2 wire 208/230 Volt A.C. 3 Phase 60 HZ 3 wire Electrical characteristics other than above available on request.
32.0 TOTAL AMPS 1 Phase Air 3 Phase Water 29.7 17.2 MINIMUM CIRCUIT AMPACITY 33.0 19.0 3 Phase Air 18.2 20.0 Authorized Distributor SOFT SERVE YOGURT 56TF MOTOR H.P. Beater Compressor Two 2 HP 1.5 H.P. 11 000 BTU
All specifications subject to change without notice.
DIMENSIONS NET D. W. H. WT. 1 Phase Water 30 26 58 551 lbs. 28.2 76 CM 66 CM 147 CM 250 KG division of H.C. DUKE & SON INC.
