Description

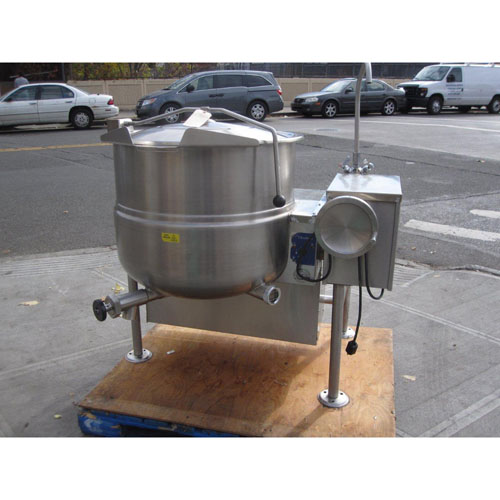

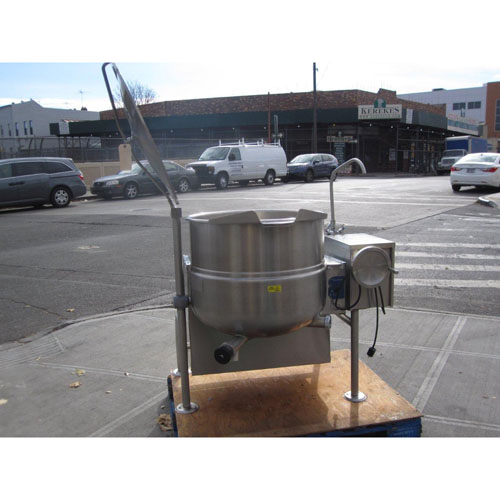

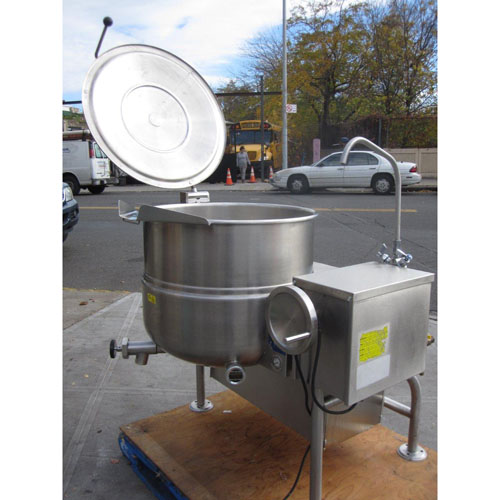

Cleveland Steam Jacketed Tilting kettle Used Model # KGL-40T
- Used Condition
- Good Condition
- Works perfect
Model # | KGL 40T | Volt | 120 |

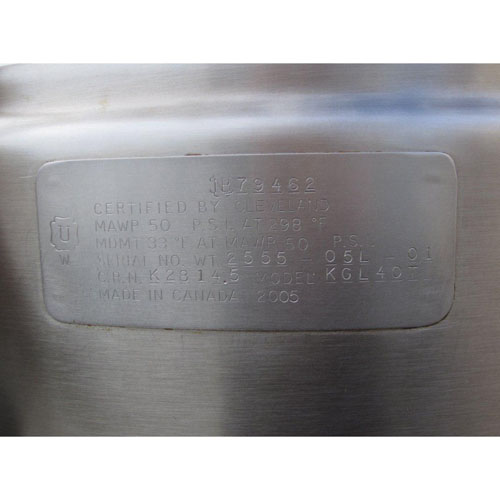

Serial # | WT 2555-05L-01 | Phase | 1 |
Width | 45 3/4" | Amp / Hz | 10 /60 |
Depth | 42 1/4" | Btu/h | 190.000 |
Height / Lid Open | 40 1/2" / 78" | Shipping Weight | 850 |
Item Description
- High efficiency Power Burner Heating System (62% to 65% efficiency)
- Fast Heat-up and Recovery Time, 140M BTU’s on 40 gallon models, 190M BTU’s on 60 gallon and larger
- Insulated Heat Exchanger
- Automatic Ignition System
- Steam Jacket permanently filled with treated, distilled water.Venting and/or refilling not required.
- Solid State Controls, for Temperature and Low Water Safety, in a plug-in Control Module
Control Panel includes:
- Precise, consistent temperature control: less than ± 1°C variance (ideal for simmering).
- L.E.D. Indicators for Heat Cycle and Low Water Warning.
- Power “on/off” Switch
- Front mounted combination Pressure/Vacuum Gauge
- Type 304 Stainless Steel with #4 finish on kettle and supports

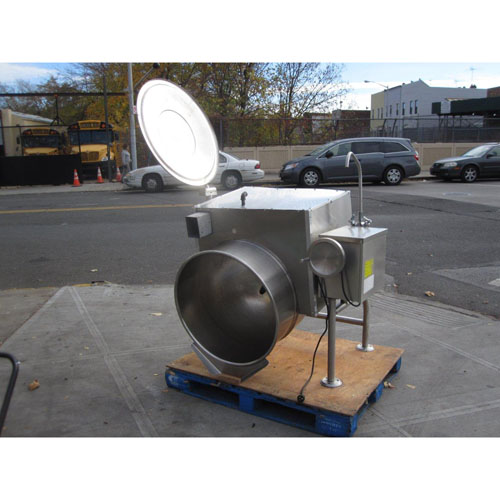

- Tilt Mechanism of roller bearings and case hardened self-locking worm and segment gear
- Support Legs with level adjustable feet, flanged for floor bolting
-
50 psi Steam Jacket Rating and Safety Valve
-
Standard voltage is 115 volts, 60 Hz, single-phase, supplied with cord and plug
-
Standard for natural gas operation
-
Typical approvals include AGA, CSA, CE, NSF and ASME
