Description
Description

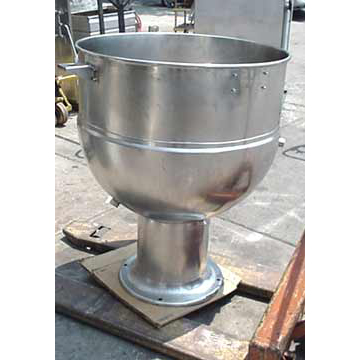

Kettle shall be Groen Model PT 60 stainless steel, 2/3 jacketed unit operating from direct steam per Bulletin 1A as follows:
Construction
Kettle shall be of Type 304 stainless steel, with solid one piece welded construction. Unit shall be provided with a heavy, durable bar rim
with a continuous seal weld on the underside to ensure maximum durability and sanitation. Unit provided with faucet bracket as standard.
Finish
Interior of kettle shall be polished to a 180 emery grit finish. Exterior of kettle shall be finished to a bright high buff finish,
ensuring maximum ease in cleaning and maintaining brilliant appearance.
A.S.M.E. Code
Unit shall be A.S.M.E. shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 25 PSI.
Sanitation
Unit shall be designed and constructed to meet NSF and known health department and sanitation codes, and be NSF listed.
Drawoff
Unit shall have a 2" sanitary tangent drawoff which is a 316 stainless steel compression disc drain valve, for easy disassembly
without tools. Larger 3" drawoffs available. The drain outlet shall be equipped with a removable 1/4" perforated stainless steel strainer.
Steam Pressure
Kettle shall operate dependably at any steam pressure between 5 and 25 PSI. Higher working pressure available.
Mounting
Unit shall be mounted on an all stainless steel pedestal base, with the outer circumference of the pedestal flanged down
vertically to insure proper sealing to the floor or deck.
Installation
Remote steam source required. Steam trap assembly is required and not provided unless ordered as an option.
See dimension R on other side for steam inlet size and number.
- Please note that there is no cover included with this item
