UPC: 8603810042035
Description

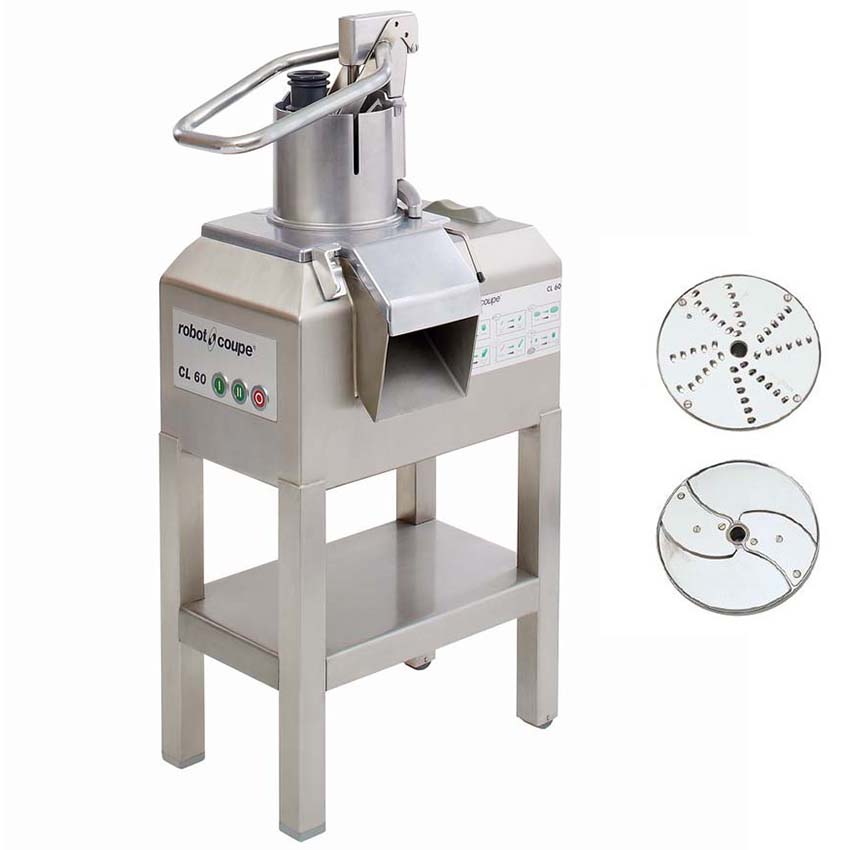

High Volume Vegetable Prep. Up to 1,200 lbs. per hour For high volume processing for a wide range of sizes and shapes of vegetables and fruits. Magnetic safety switch. Accommodates 39 different processing discs. Comes with large lead assembly and one slicing and one grating disc.
- Power: 4 HP—Three phase.
- 2 speed: 450/850rpm.
- Induction motor. Magnetic safety system and motor brake.
- Stainless steel motor base.
- Delivered with:
- Metal pusher feed head (diameter 7") with feed tube (diameter 3").
- Stainless steel stand.
- 2 discs included: C446SA (3mm) 1/8" slicing disc and C450GPA (3mm) 1/8" grating disc
- 2 disc racks
- Complete selection of 40 discs available.*
- Processor has dicing capablities.
- Dimensions: (H×L×W): 59" × 16 " × 24 1/8" Cube: 19.10
- Approx. shipping weight: 150 lbs
- Approx. carton size: (H×L×W): 55 1/2" × 19 1/2 " × 30 1/2"—Cube: 19.10
- ETL electrical and sanitation listed/CETL (Canada).
- NEMA #L15-20P
Options for the CL60 Pusher Series E
| Ref No. | Description |
| CL575 | Wall mount plate rack |
| R255 | Free standing plate rack |
Specifications
| Dimensions and Weight | |
|---|---|
| Exterior Width | 24-1/8" |
| Exterior Depth | 16" |
| Exterior Height | 59" |
| Features | |
| Type | Continuous Feed Processor |
| No. of Discs / Blades Included | 2 |
| Speed Controls | 2 |
| Electrical | |
| Power Type | Electric |
| Voltage | 208-240 |
| Amps | 5.3 - 5.8 |
| Phase | 3 |
| Hertz | 60 |
| RPM | 850 |
| Horsepower | 4 |
Accessories
