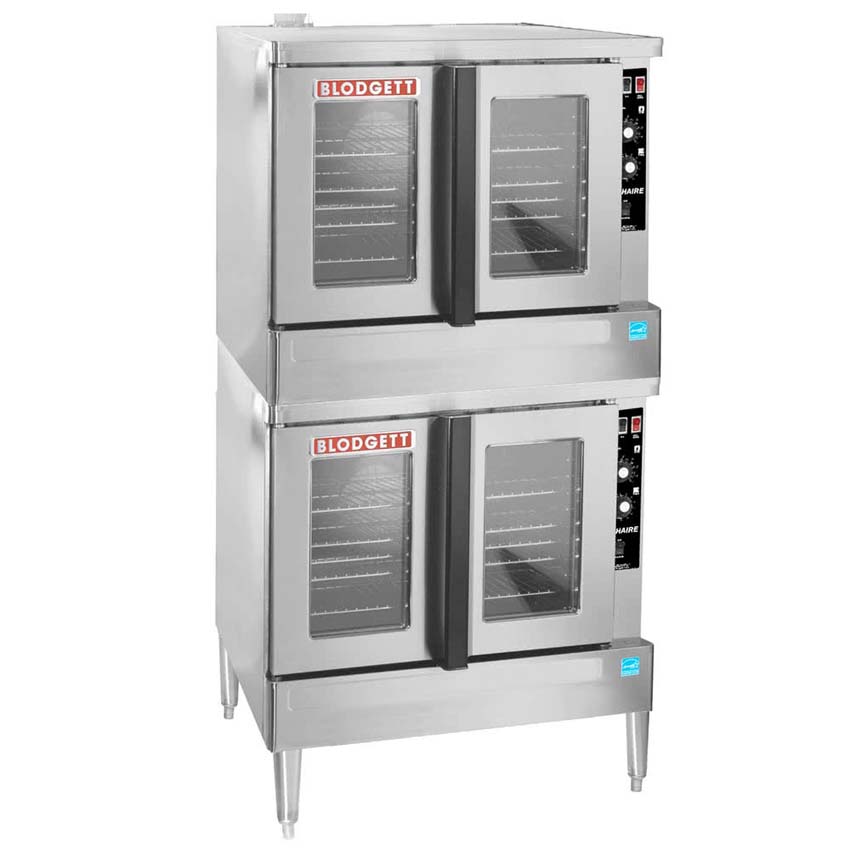

Blodgett ZEPHAIRE-100-G-ES Natural Gas Double Deck Full Size Standard Depth Convection Oven with Draft Diverter - 90,000 BTU
$13,200.00
Freight: $295.00
Liftgate, residential addresses & special delivery fees not included
Liftgate, residential addresses & special delivery fees not included
Shipping
Free ShippingNot Qualified
ShippingShips in 1-2 business days
Store PickupNot Available
- EXTERIOR CONSTRUCTION
- • Full angle-iron frame
- • Stainless steel front, top, and sides
- • Dual pane thermal glass windows encased in stainless steel door frames
- • Powder coated door handle with simultaneous door operation
Product Overview
EXTERIOR CONSTRUCTION
⢠Full angle-iron frame
⢠Stainless steel front, top, and sides
⢠Dual pane thermal glass windows encased in stainless steel door frames
⢠Powder coated door handle with simultaneous door operation
⢠Triple-mounted pressure lock door design with turnbuckle assembly
⢠1â solid block plus 1â mineral fiber insulation for a total of 2â of insulation
INTERIOR CONSTRUCTION
⢠Double-sided porcelainized baking compartment liner (16 gauge)
⢠Stainless steel combustion chamber
⢠Single inlet blower wheel
⢠Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8â (41mm) spacing
⢠Interior lights
OPERATION
⢠Direct Fired Gas system
⢠Electronic spark ignition control system
⢠Removable inshot burners
⢠Internal pressure regulator
⢠Manual gas service cut-off switch located on the front of the control panel
⢠Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C)
⢠Two speed fan motor (single speed in CE model)
⢠3/4 horsepower blower motor with automatic thermal overload protection
⢠Control area cooling fan
STANDARD FEATURES
⢠SSI-D - Solid state infinite control w/digital timer
⢠25â (635mm) adjustable stainless steel legs (for single units)
⢠6â (152mm) adjustable stainless steel legs (for double sections)
⢠Draft diverter or draft hood for venting (select one)
⢠Full angle-iron frame
⢠Stainless steel front, top, and sides
⢠Dual pane thermal glass windows encased in stainless steel door frames
⢠Powder coated door handle with simultaneous door operation
⢠Triple-mounted pressure lock door design with turnbuckle assembly
⢠1â solid block plus 1â mineral fiber insulation for a total of 2â of insulation
INTERIOR CONSTRUCTION
⢠Double-sided porcelainized baking compartment liner (16 gauge)
⢠Stainless steel combustion chamber
⢠Single inlet blower wheel
⢠Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8â (41mm) spacing
⢠Interior lights
OPERATION
⢠Direct Fired Gas system
⢠Electronic spark ignition control system
⢠Removable inshot burners
⢠Internal pressure regulator
⢠Manual gas service cut-off switch located on the front of the control panel
⢠Solid state thermostat with temperature control range of 200°F (93°C) to 500°F (260°C)
⢠Two speed fan motor (single speed in CE model)
⢠3/4 horsepower blower motor with automatic thermal overload protection
⢠Control area cooling fan
STANDARD FEATURES
⢠SSI-D - Solid state infinite control w/digital timer
⢠25â (635mm) adjustable stainless steel legs (for single units)
⢠6â (152mm) adjustable stainless steel legs (for double sections)
⢠Draft diverter or draft hood for venting (select one)
Specifications
| Access | |
|---|---|
| No. of Doors | 4 |
| Certificate Label | |
|---|---|
| Energy Star Qualified | Yes |
| NSF Listed | Yes |
| Dimensions and Weight | |
|---|---|
| Gas Inlet Size | 3/4" |
| Exterior Width | 38-1/4" |
| Exterior Depth | 36-7/8" |
| Exterior Height | 72" |
| Interior Depth | 24-1/4" |
| Interior Height | 20" |
| Interior Width | 29" |
| Size | Full |
| Electrical | |
|---|---|
| Power Type | Natural Gas |
| Voltage | 115 |
| Amps | 8 |
| Phase | 1 |
| Hertz | 60 |
| Horsepower | 1 1/2 |
| Features | |
|---|---|
| Total BTU/HR | 90,000 |
| Temperature Range | 200 - 500° F |
| No. of Chambers | 2 |
| No. of Racks | 10 |
| Oven Interior Style | Standard Depth |
| Pan Capacity | 10 |
| Deck | Double |
| Features | Draft Diverter |
