Description
Standard Features:

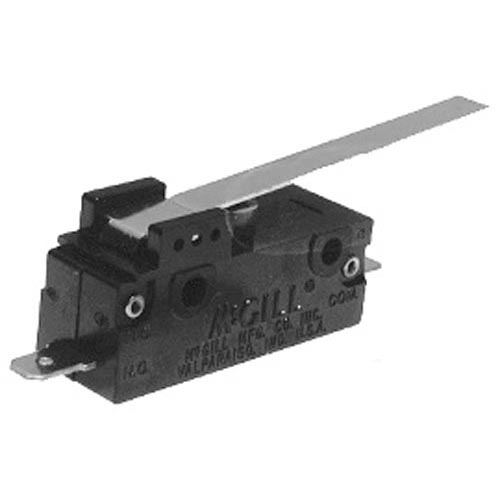

DOOR MICRO LEVER SWITCH, MOMENTARY,
15 AMP-250V/125V; 3/4HP, SPST; 1/4" TAB TERM (3);
LEVER 2-3/8",
HOBART OVEN CN85
WOLF OVEN KCH & KCHSS & XCH (-129 MODEL ONLY), KF, KFS.
High temp nickel plated terminal connectors:
1/4" female tab (14-16 wire) # 85-1012, bx/100
1/4" female tab (10-12 wire) # 85-1013, bx/100
Insulated terminal connectors:
1/4" female tab (14-16 wire) blue # 85-1032, bx/100
1/4" female tab ( 10-12 wire) yellow # 85-1061, bx/100
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| JACKSON | 5930-303-26-17 |
| VULCAN HART | 00-347717-00001 |
| VULCAN HART | 00-715122 |
| HOBART | 00-347717-00001 |
| HOBART | 00-347717-1 |
| HOBART | 00-715122 |
| HOBART | 15122 |
| HOBART | 347717-1 |
| HOBART | 715122 |
| JACKSON | 05930-303-26-17 |
| JACKSON | 164100 |
| JACKSON | 164101 |
| JACKSON | 59303032617 |
| JACKSON | 6401-016-41-01 |
| JACKSON | 64010164101 |
| VULCAN HART | 15122 |
| VULCAN HART | 347717-1 |
| VULCAN HART | 715122 |
Specifications
| Dimensions and Weight | |
|---|---|
| Terminal Size | 1/4 |
| Features | |
| Type | Switches |
| Positions | On/Off |
| Switch Type | On / Off |
| Terminal Number | 2 |
| Electrical | |
| Voltage | 125 |
