Description
Standard Features:

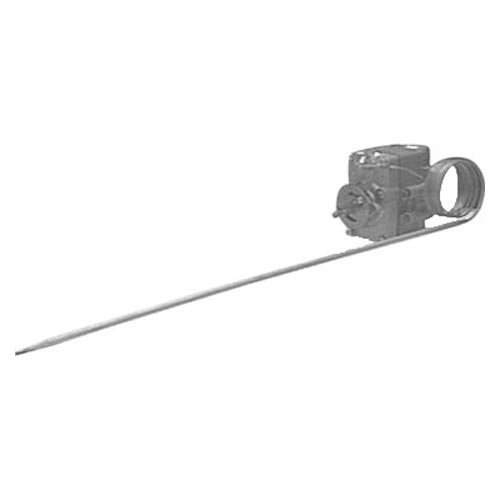

[ FDO-1 ] [ TEMP 150-550 ] [ BULB 3/16" X 14-3/4"]
[ CAP 48" ][ 1/2" NPT IN/OUT (SIDE) F & E] NO DIAL.
DIAL # 22-1129, 2-1/2" DIA, 150-550, MOUNT .290"
[POSITION 4 WAY]
DIAL GEN USE # 22-1009, ROBERTSHAW-150-550,"D".290", 4-WAY
FRANKLIN CHEF OVEN SERIES: GDO (EXCEPT GDO-232).
GARLAND OVEN SERIES: G2000.
JADE OVEN WHERE APPLICABLE
SOUTHBEND BROILER 171-40 & -40A/B/C/D, 32-40
OVEN CONV: V10 & 20; VS10 & 20.
DECK: 17, 112, 177.
RANGE 136, 142, 1228, 1361, 1362, 1363, 1364, 1421, 1422,
1423,1424, T1361, T1421. 1363, 1364, 1421, 1422, 1423,
1424, T1361, T1421.
DIAL # 22-1129 BLACK W/WHITE NUMBERS
[ 2-1/2" DIA ] [ 150-550] [MOUNT .290"] [POSITION 4 WAY]
GEN USE DIAL # 22-1009 [ 2-1/2" DIA ]
ROBERTSHAW-150-550,"D" MOUNT .290", [POSITION 4 WAY]
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| FRANKLIN CHEF | 146517 |
| GARLAND | 1017591 |
| GARLAND | G01920-01 |
| HOBART | 00-335553-00001 |
| SOUTHBEND | 1170193 |
| FRANKLIN CHEF | 142970 |
| FRANKLIN CHEF | 144720 |
| GARLAND | 1017500 |
| GARLAND | 1017514 |
| GARLAND | 1017599 |
| GARLAND | 1019400 |
| HOBART | 335553-1 |
| SOUTHBEND | 1010302 |
| SOUTHBEND | 1010396 |
| SOUTHBEND | 1010397 |
| SOUTHBEND | 1010398 |
| SOUTHBEND | 1010399 |
Specifications
| Features | |
|---|---|
| Temperature Range | 150 - 550° F |
| Electrical | |
| Thermostat Type | Hot Side Gas Thermostat |
