Description
Description:

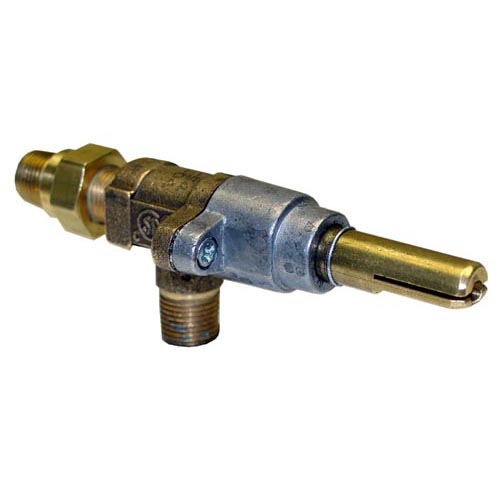

BURNER VALVE, NAT [ 1/8" MPT X 1/8" MPT ] [ ROTATION
OFF/HI/LOW] PUSH TO TURN,
[STEM FLAT DOWN] [STEM SIZE .240" ] STEM LENGTH 1-1/4',
[CTR INLET TO END OF STEM 2-1/8" ] [ ANGLE - 90],
"c" = 7/8"
[ COMES WITH 3/8"-27 X 1/8" MPT ADAPTER FOR OUTLET ],
FOR KNOB USE # 22-1258 OFF-HIGH-LOW.
SOUTHBEND BROILER 3230 A, S-36 A, S-60 A
CONVECTION OVEN 300, 301, HT
OFF/HI/LOW] PUSH TO TURN,
[STEM FLAT DOWN] [STEM SIZE .240" ] STEM LENGTH 1-1/4',
[CTR INLET TO END OF STEM 2-1/8" ] [ ANGLE - 90],
"c" = 7/8"
[ COMES WITH 3/8"-27 X 1/8" MPT ADAPTER FOR OUTLET ],
FOR KNOB USE # 22-1258 OFF-HIGH-LOW.
SOUTHBEND BROILER 3230 A, S-36 A, S-60 A
CONVECTION OVEN 300, 301, HT
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| SOUTHBEND | 1176006 |
| BLODGETT | Z1176006 |
