Description
Description:

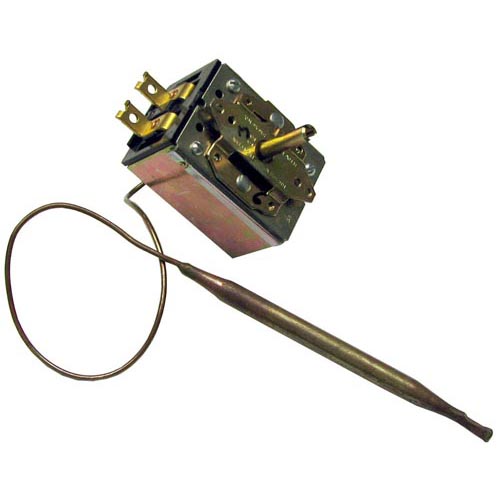

T'STAT, TEMP 100-530 F, BULB 5/16" X 4", CAP 12"
VERT MOUNT, .187" D-STEM FLAT DOWN
FOR DIAL USE # 22-1451 OFF-10-1
ROUNDUP MODEL VCT-20, VCT-20CV, VCT-25, VCT-50
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| ROUNDUP | 4030235 |
Specifications
| Dimensions and Weight | |
|---|---|
| D Stem Size | 3/16 |
| Features | |
| Bulb | 5/16" x 4" |
| Capillary | 12" |
| Temperature Range | 100 - 530° F |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
