Description
Description:
VIEWED FROM REAR: SEE "BJ OUTLET POSITIONS"
W/ BY-PASS ADJ AT TOP & GAS INLET DOWN

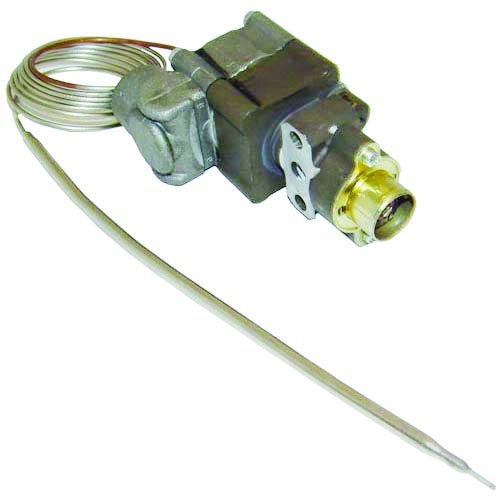

BJWA T'STAT, 1/4" NPT, OUT "C" REAR, TEMP 150-400,
CAP 48", BULB 3/16" X 8-5/8", ROTATION 0 DEGREES.
USE DIAL A5621, K-108, # 221036 LO-400-HI
USE BEZEL A259, K-333, # 221013
DYNAMIC COOKING SYSTEMS
GRILL
GRIDDLE.
USE DIAL A5621, K-108, # 221036 LO-400-HIW/ BY-PASS ADJ AT TOP & GAS INLET DOWN
BJWA T'STAT, 1/4" NPT, OUT "C" REAR, TEMP 150-400,
CAP 48", BULB 3/16" X 8-5/8", ROTATION 0 DEGREES.
USE DIAL A5621, K-108, # 221036 LO-400-HI
USE BEZEL A259, K-333, # 221013
DYNAMIC COOKING SYSTEMS
GRILL
GRIDDLE.
USE BEZEL A259, K-333, # 221013
SOLID STATE POCKET GAS DETECTOR N338, # 851101
TEFLON THREAD SEALING TAPE B415, Q-130, # 851109
"GRIPP" HEAVT DUTY THREAD SEALER 1/2 PINT B313, # 851101
PTFE HEAVY DUTY THREAD SEALER 1/4 PINT B768, # 851136
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
|
OEM Names |
OEM # |
| AMERICAN RANGE | A11142 |
| DCS (Dynamic Cooking Systems) | 13032 |
| DCS (Dynamic Cooking Systems) | 55764-04 |
Specifications
| Features | |
|---|---|
| Bulb | 3/16" x 8 5/8" nickel |
| Capillary | 48" |
| Electrical | |
| Thermostat Type | Hot Side Gas Thermostat |
