Description
Description:

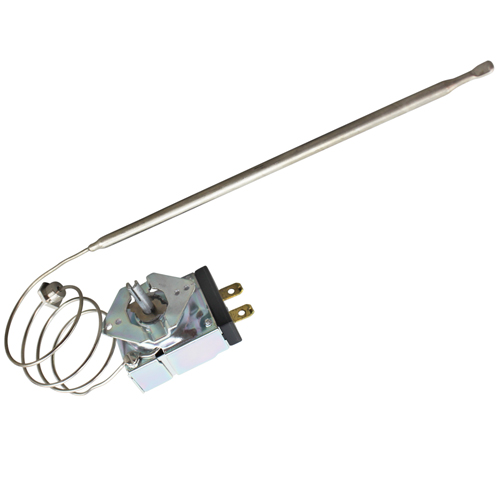

[ TYPE - SP ] [ TEMP 300-375 ]
[ BULB 1/4" X 8-1/2" NICKEL] [ CAP 24" ] [ MOUNT 1 ]
# 22-1086 "WELLS" THERMOSTAT KNOB, [ 2-3/8" DIA. ]
[ OFF-375-300] [MOUNT .187" ] [FLAT LEFT* ],
*OFF PRINTED ON BOTTOM.
WELLS
FRYER
F(55,55STS,58,85,88,98,101,104,104 S3,104 S4,104
S5,106,108,201,208,556,586,856,886,986,1016,1200,
1725,2000,2086), FB(101,108,201,208,2000),
FNW(49,58,58STS), FS(1200,1725), RCB(12,22,101,201).
CAPILLARY CLAMP: # 26-3078 SNAP-IN,
CAPILLARY CLAMP: # 26-1935 CLIP-ON
CALIBRATION SCREW DRIVER # 72-1007
Replaces the following Manufacturer's Products
OEM Numbers are used for reference only.
| OEM Names | OEM # |
| STAR MFG | WS-55510 |
| STAR MFG | WS-57410 |
| STAR MFG | WS-64976 |
| BLOOMFIELD | WS-55510 |
| BLOOMFIELD | WS-57410 |
| BLOOMFIELD | WS-64976 |
| WELLS | 35510 |
| WELLS | 55510 |
| WELLS | 57410 |
| WELLS | 64976 |
| WELLS | WS-55510 |
| WELLS | WS-57410 |
| WELLS | WS-64976 |
Specifications
| Features | |
|---|---|
| Type | SP |
| Bulb | 1/4" x 8 1/2" nickel |
| Capillary | 24" |
| Temperature Range | 300-375 |
| Electrical | |
| Thermostat Type | Hot Side Electric Thermostat |
