Butcher Boy Meat Grinder Body & Motor Model # TCA32 Head Size 22 Used Good Condition
- Used
- Works Perfect
- Good Condition
| Model # | TCA 32 | Volt | 208 |
| Serial # | 20574 | Phase | 1 |
| Width | 20 1/2" | Amps | 12 |
| Depth | 37 1/2" | Hz | 60 |
| Height | 23" | HP | 2 |
| Shipping Weight | 225 Lb |

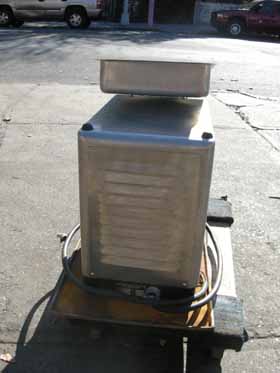

This machine's Body & Motor motor is from Model TCA 32 as on the Tag But the Head is Size 22
the dimensions of the pan on top are 12 1/4 " x 33 "
ELECTRICAL:
Three phase motors equipped with connecting cord without plug. All TCA32
GRINDERS have motor starters with overload relays and 24-volt controls.
CONSTRUCTION:
Frame, housing and pan are made of stainless steel. Pan and bowl are easily
removed, without tools, for easy cleaning. Pan is of heavy gauge stainless
steel.
CUTTING GROUP:
The cutting group is of precision machined gray iron covered with hot dipped
tin. The guard is aluminum.
POWER TRANSMISSION:
Power is transmitted from the motor to the ball bearing supported, hardened
helical gear, oil bath lubricated gearbox by v belt and pulleys. The feed screw
is driven by a replaceable iron chuck allowing the wearing parts to be replaced
easily. Thrust from the feed screw is taken up by a large thrust bearing in the
gearbox.
CONSTRUCTION FEATURE:
A special chamber with drain holes between the gearbox and the bowls product
area prevents intrusion of product in the gearbox or lubricant from the gearbox
contaminating the product.
CAPACITY:
Depending on plate size and product the grinding capacity of the TCA32 will be
from 40 to 50 pounds per minute.
ACCESSORIES:
The TCA32 comes with a stomper, parts list and instruction manual. Knife and
plate are not furnished with the machine but maybe ordered separately.
MACHINE SHIPPING WEIGHT:
210 Pounds (110 KGS) Net. - 240 Pounds (96 KGS) Gross.
 |
 |
 |
 |
 |
 |
