Description

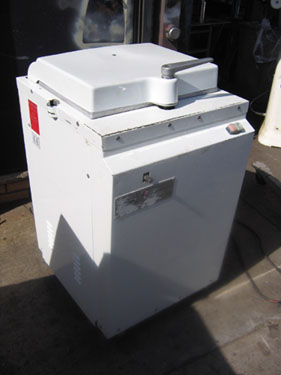

Forni 20 Pt Hydraulic Divider with Rectangular Bowl Used
Used
Very Good Condition
Well Maintained
Approx 12 years Old
Excellent Price
This machine is Basically The equivalent of the mercure 2 made by this manufacturer But an older model So I have Given The info of the newer model so give or take More or less the same Idea
Hydraulic divider with rectangular bowl
Oil tank capacity: 17 litres (special hydraulic movement oil).
The Mercure 2 divider’s rectangular bowl ensures that each
piece of dough is identical in shape by an even distribution of
the dough, thus guaranteeing the consistent weight of each
dough piece.
Thanks to the double sloping edge of their knives, Mercure 2
dividers avoid any unnecessary pressure on the dough whilst
cutting, and solve the problems of tearing caused by traditional knives.
The cubic geometry of the dough pieces, due to the form of
the Mercure 2 divider’s bottom plate, gives a better quality of
rounding of the piece of dough.
With the silent function the Mercure 2 starts automatically
when moving the distributor handle, allowing to work in a
quiet atmosphere.
Construction
Mercure 2 20 : 20 divisions
Non-stick underside of lid
Rectangular food-grade alloy bowl
Double milled knife for a perfect cut
Bowl edge machined to incorporate air escape vents
Lid locked by drop-forged cam
Pressure provided by a double acting hydraulic system
Cast aluminium ram support frame
Motors fitted with thermistors
Trip switch with low power cut-out
Motor powering a hydraulic pump fed by a 19 dm³ oil tank
Frame mounted on directional castors, two of them with brakes
Epoxy painted (food-grade)
bowl walls made of stainless steel
The smooth surface (natural polyamide) of the single unit
sliders prevents dough from sticking to the tray, ensuring
improved hygiene and easier cleaning
One-piece sliders prevent dough from sticking, ensuring
improved hygiene and easier cleaning.
Option of fitting a bun grid
Safety use
Supply voltage : three phase 400 V 50 Hz
General features
Model Mercure 2 20
Reference 29402103
Performance
Number of divisions 20
Cut Single
Bowl depth 125 mm
Bowl diameter 504 x 380 mm
Capacity
minimum 3 kg
maximum 16 kg
Output 1200 p/h
Accessories: bun grid 40 or 80 div
Power 1.5 kW 1.5 kW
Pressure 44 bars
Dimensions and weight
Loading height 960 mm
Overall 790 x 660 mm
Height with lid up 1530 mm
Footprint 750 x 590 mm
Net weight 250 kg
