MFR: 3TR85AF
Description

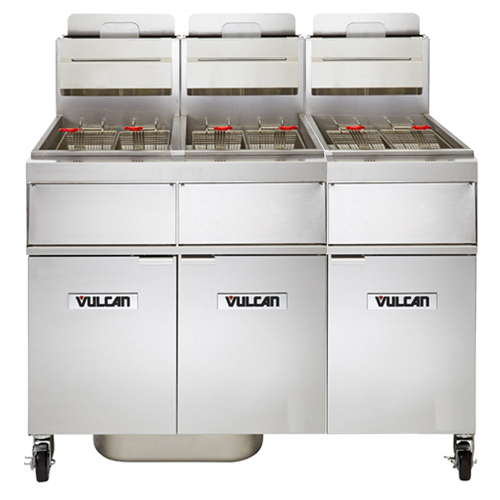

Vulcan 3TR85AF Freestanding Gas Fryer - 255 lb. Oil Cap. w/ Solid State Analog Knob Control
Featuring a unique ThreePass™ Heat Exchanger, this ENERGY STAR® qualified fryer delivers shorter cook times for optimum throughput, quick temperature recovery, less oil absorption and reduced oil top-off.
- Gas Fryer
- 63" W
- Free-standing
- 270,000 BTU
- Stainless steel cabinet and fry tank, 19-1/2" x 18-1/4"
- 85-90 lb. each shortening capacity
- Solid state analog knob control with melt cycles
- ThreePass™ Heat Exchanger
- Electronic ignition
- KleenScreen PLUS® filtration system
- Twin baskets
- Adjustable casters (2 swivel with locks; 2 rigid)
- 1-1/4" I.D. rear gas connection
- 120/60/1ph, 1/3 hp, 5 amps, for filter
- ENERGY STAR®
Specifications
| Features | |
|---|---|
| Material | Stainless steel |
| Total BTU/HR | 270,000 |
| Control | Knob |
| Filter System | Yes |
| Installation Type | Floor Model |
| Maximum Heat Resistance | 390°F |
| No. of Tanks | 3 |
| Utility | Gas |
| Electrical | |
| Plug Type | NEMA 5-15P |
| Voltage | 120 |
| Amps | 6 |
| Phase | 1 |
| Hertz | 60 |
| Horsepower | 1/3 |
| Dimensions and Weight | |
| Exterior Width | 63" |
| Exterior Depth | 34-3/8" |
| Exterior Height | 47-1/4" |
| Pounds Capacity | 255 |
| Weight | 968 Lbs. |
